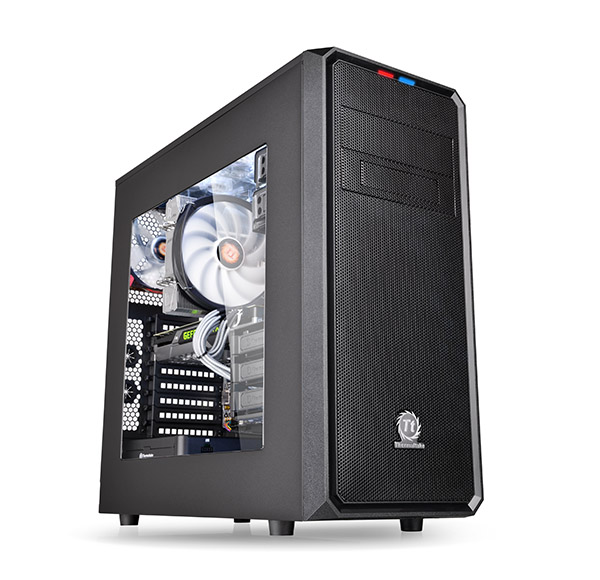

Thermaltake Versa H35 Window Mid-tower Chassis
The new Thermaltake Versa H35 Window mid-tower chassis is especially designed for gamers as well as home-computer builders. With modular drive racks design, Versa H35 creates enough spaces for high-end hardware and expansion. The ample ventilation options, cleanable air filter, and a perforated mesh bezel help to keep the entire system cool and dust-free. Also, Versa H35 delivers advanced liquid cooling solutions and stress-free cable management to customize user’s computer or gaming system.

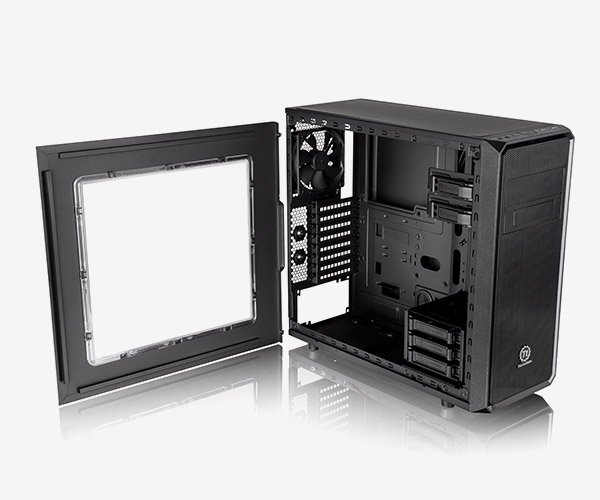

Built for Gamers
Designed for gamers, the perforated top and bottom panels with magnetic dust filters allow easy heat dissipation and rapid air intake for maximum ventilation. The heighten foot-stands at the bottom help to enhance airflow and overall stability during operation. Featuring a transparent side window to offer a direct view of the inner system.

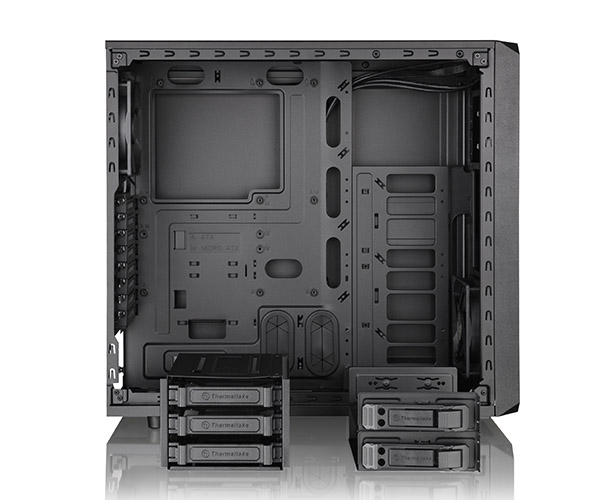

Tool-free Installation
Innovative 5.25” & 3.5” tool-free drive bay design minimized the hassles of installing/removing. Dual drive bay concept “2 + 3”, a perfect ratio for accessory and storage devices, granting ease and flexibility on setting up the best storage solution.

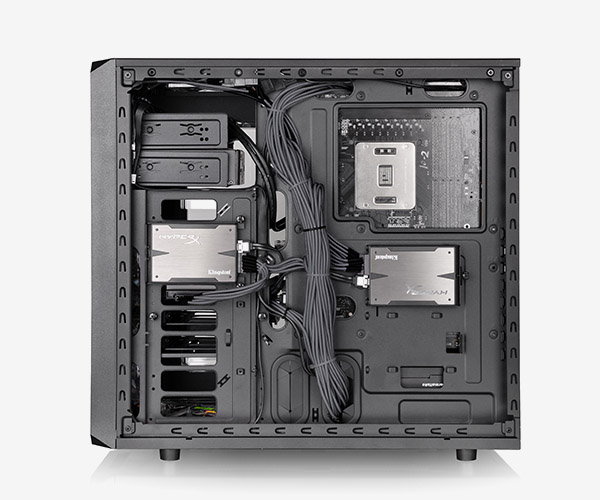

Stress-free Cable Management
Wide cable routing gap for easy cable management and hiding cables behind motherboard tray, to ensure smoothness for build and tinker (upgrade), reduce wiring tangled, as well as better airflow and dust management. Additionally, pre-mounting holes to support motherboards up to standard ATX and CPU cooler installation, long graphic cards also supported as well as Liquid Cooling System.

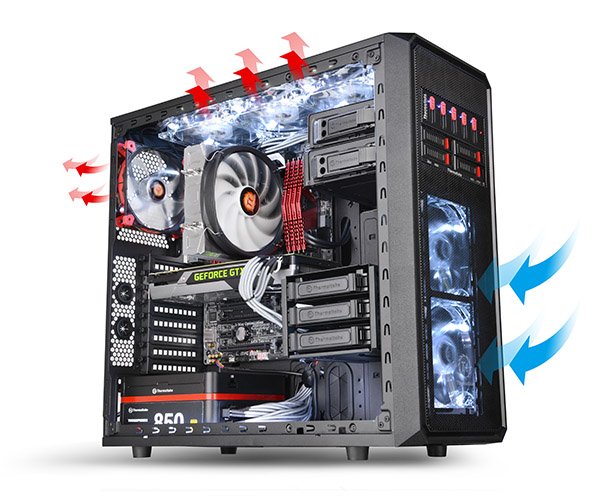

Optimized Ventilation
Two preinstalled 120mm turbo fans with removable filters spin up to 1000RPM. The optional 120mm intake fan and removable fan mounting dust filters at top and bottom PSU filter to optimize system ventilation.

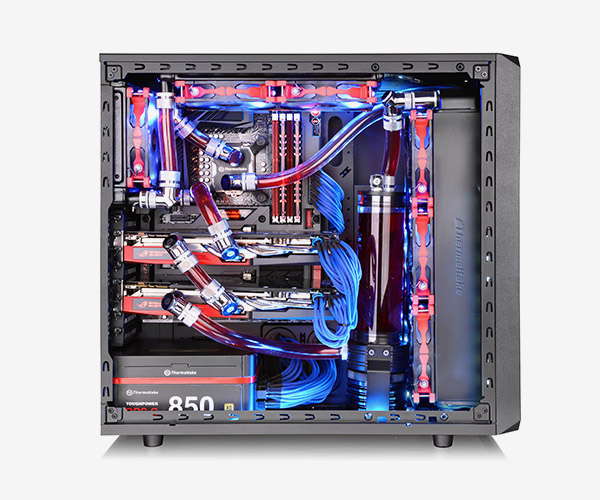

Complete System on the Go
Versa H35 enables user to build a complete high-end solution, supporting up to 360mm radiator liquid cooling system with long graphic card. Versa H35 protects user’s hardware and increase CPU’s overclocking potential. Most importantly, to delivers outstanding cooling efficiency in the entire case.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

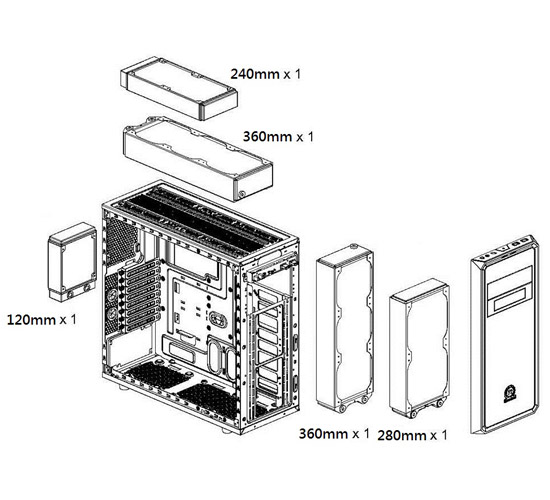

Versa H35 Radiator Supporting List
| Radiator Compatibility | |||||
| 120mm | 140mm | 240mm | 280mm | 360mm | |
| Front | * | * | * | * | * |
| Top | * | * | * | ||
| Rear | * | ||||
| Bottom | |||||
| Water 3.0 Compatibility List | ||||
| Ultimate | Extreme | Pro | Performer | |
| Front | * | * | * | * |
| Top | * | * | * | * |
| Rear | * | * | ||
| Bottom | ||||

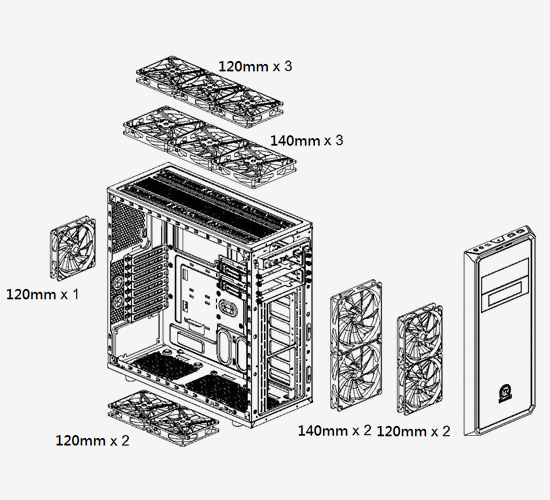

Versa H35 Fan Supporting List
| Fan Compatibility List | ||
| 120mm | 140mm | |
| Front | 2 | 2 |
| Top | 3 | 3 |
| Rear | 1 | - |
| Bottom | 1 | - |
| Thermaltake Compatible Fan | ||
| PURE FAN Series | * | * |
| LUNA FAN Series | * | * |
| Odin FAN Series | * | - |
| P/N | CA-1D1-00M1WN-00 |
|---|---|
| Serie | Versa |
| Model | Versa H35 |
| Modello CASE | Mid Tower |
| DIMENSIONI (H x W x D) | 470 x 208 x 506 mm (18.5 x 8.2 x 19.9 inch) |
| PESO NETTO | 7.1 kg / 15.7 lb |
| PANNELLI LATERALI | Transparent Window |
| COLORE | Exterior & Interior : Black |
| MATERIALE | SPCC |
| SISTEMA DI RAFFREDDAMENTO | Front (intake) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA) |
| ALLOGGIAMENTI DRIVE | -Accessible : 2 x 5.25’’, 1 x 3.5’’ (Converted from one 5.25” drive bay) -Hidden : 3 x 3.5" or 3 x 2.5" 2 x 2.5" (2 behind the M/B tray) |
| SLOT DI ESPANSIONE | 8 |
| SCHEDE MADRI | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube<br /> |
| I/O PORT | USB 3.0 x 2, HD Audio x 1 |
| ALIMENTATORE | Standard PS2 PSU (optional) |
| VENTOLE SUPPORTATE | Front: 1 x 120mm or 2 x 120mm 1 x 140mm or 2 x 140mm Top: 1 x 120mm or 2 x 120mm or 3 x 120mm 1 x 140mm or 2 x 140mm or 3 x 140mm Rear: 1 x 120mm Bottom: 1 x 120mm or 2 x 120mm |
| RADIATORI SUPPORTATI | Front: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm Top: 1 x 120mm or 1 x 240mm or 1 x 360mm Rear: 1 x 120mm |
| AUTORIZZAZIONE | PU cooler height limitation: 155mm VGA length limitation: 278mm(with HDD rack) 420mm(without HDD rack) PSU length limitation: 180mm (With Bottom Fan) 220mm (Without Bottom Fan) |
