Thermaltake Versa H25 Mid-Tower Chassis

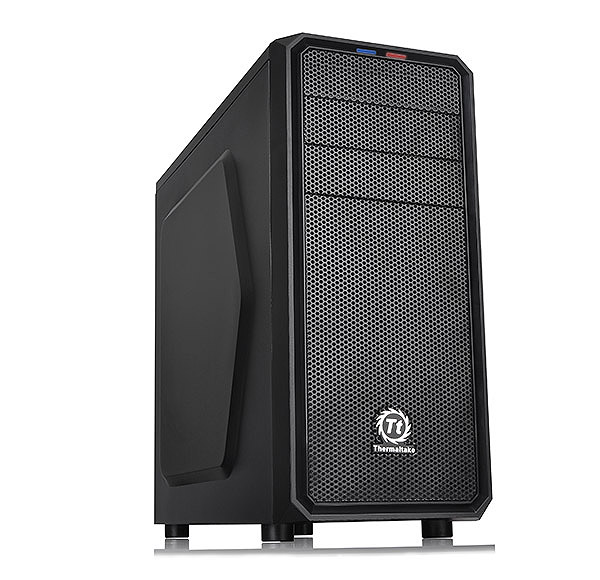

Thermaltake new Versa H25 mid-tower chassis is ideal for home-computer builders and gamers, creating enough space for high-end hardware and expansion. The ample ventilation options, cleanable air filter, and a perforated mesh bezel help to keep the entire system cool and dust-free. Versa H25 combines a manageable frame size with extensive options to customize user’s computer or gaming system.
Enthusiast Design
Designed for gamers, perforated top panel build for easy heat dissipation and rapid air intake for maximum ventilation. The heighten foot-stands at the bottom help to enhance airflow.
Tool-free Installation

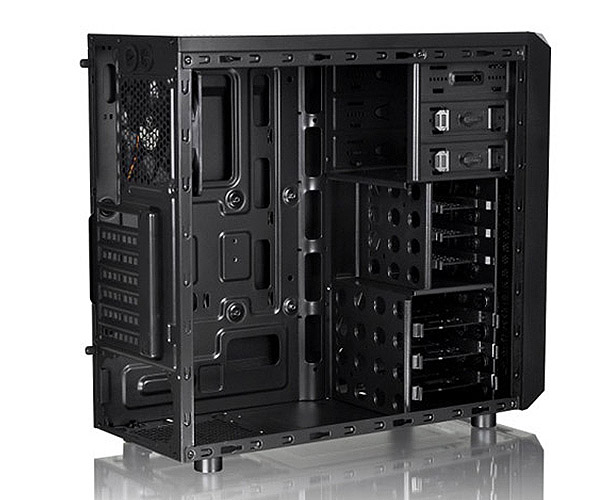

Innovative 5.25” & 3.5” tool-free drive bay design minimized the hassles of installing/removing. Trio drive bay concept “2 + 3 + 3”, a perfect ratio for accessory and storage devices. Also, tool-free mount fan can be clipped on the dust filter.
Handy I/O Ports

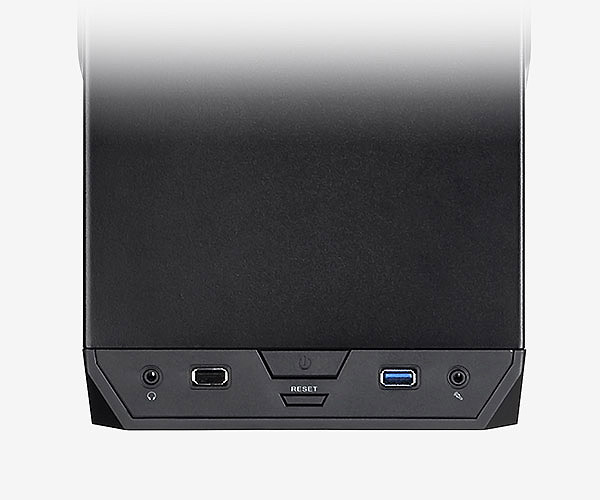

The perforated top-front panel has implemented one data transfer SuperSpeed USB 3.0 port along with one standard USB 2.0 port, a HD microphone and headset jacks, to grand direct access when needed.
Optimized Ventilation
A preinstalled 120mm rear turbo fan along with optional 2 x 120mm intake fans and 2 x 120mm exhaust fans as well as a removable front fan mounting dust filter and bottom PSU filter to optimize system ventilation. Cable management design takes cooling performance to another step.
High-end Complete System on the Go

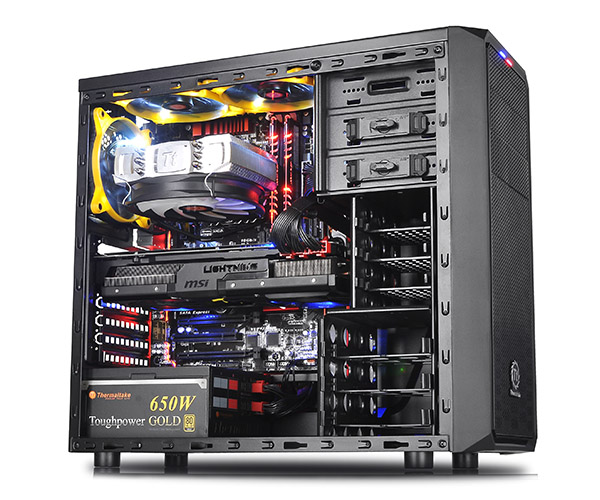

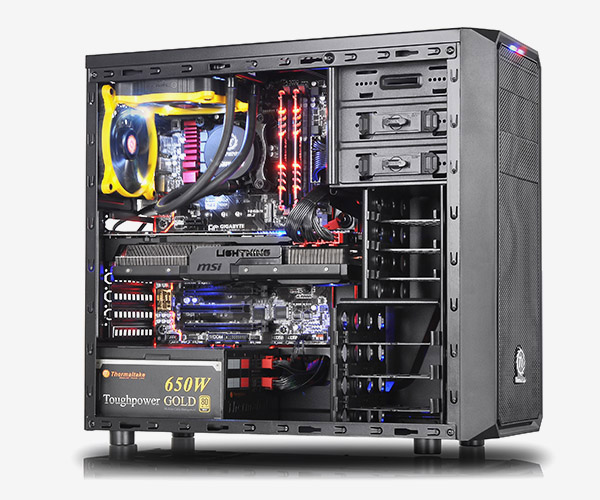

Enables user to build a complete high-end solution including a 120mm radiator liquid cooling system with long graphic card. Versa H25 protects user’s hardware and increase CPU’s overclocking potential. Most importantly, to delivers outstanding cooling efficiency in the entire case.
| P/N | CA-1C2-00M1NN-00 |
|---|---|
| Serie | Versa |
| Model | Versa H25 |
| Modello CASE | Mid Tower |
| DIMENSIONI (H x W x D) | 429 x 209 x 478mm (16.9 x 8.2 x 18.8 inch) |
| PESO NETTO | 4.2 kg / 9.3 lb |
| PANNELLI LATERALI | No Window |
| COLORE | Exterior & Interior : Black |
| MATERIALE | SPCC |
| SISTEMA DI RAFFREDDAMENTO | Front (intake) :(optional) 120 x 120 x 25 mm x 2 Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA) Top (exhaust) :(optional) 120 x 120 x 25 mm x 2 |
| ALLOGGIAMENTI DRIVE | -Accessible : 2 x 5.25’’ -Hidden: 3 x 3.5’’ or 2.5’’, 3 x 2.5’’ |
| SLOT DI ESPANSIONE | 7 |
| SCHEDE MADRI | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube |
| I/O PORT | USB 3.0 x 1,USB 2.0 x 1, HD Audio x 1 |
| ALIMENTATORE | Standard PS2 PSU (optional) |
| RADIATORI SUPPORTATI | Rear: 1 x 120mm |
| Other | CPU cooler height limitation: 155mm VGA length limitation: 315mm |
