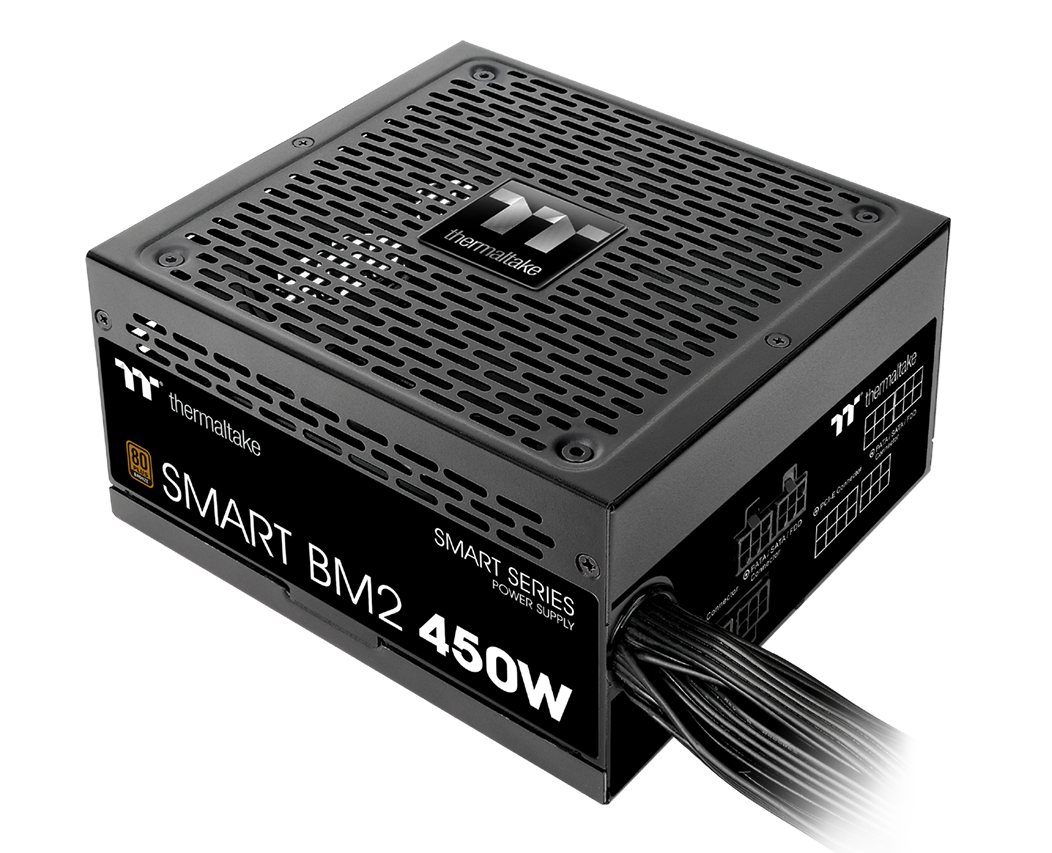

Smart BM2 450W - TT Premium Edition
Built to deliver 80 PLUS Bronze efficiency with up to 85% of
it, the
Smart BM2 series is available in 450W/550W/650W/750W. Constructed with a 140mm rifle bearing fan, Japanese
main capacitors and other premium components, the Smart BM2 450W delivers a continuous and stable power
output at 40℃, allowing near silent operation and reliable performance. With an ample 5-year warranty, the
Smart BM2 450W is able to satisfy the market, where value-oriented users are looking for a new power supply
with all the latest features.

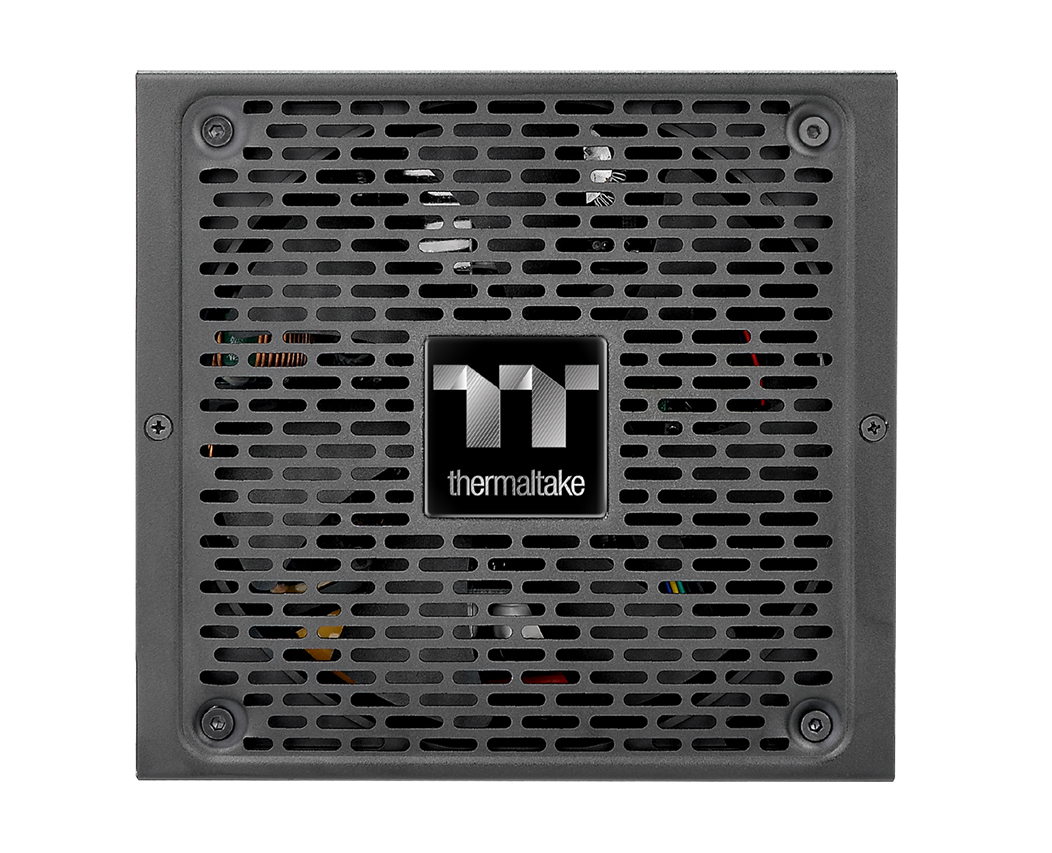

Ultra Quiet 140mm Rifle Bearing Fan
The Smart BM2 450W adopts a 140mm silent Rifle Bearing fan with intelligent preset RPM control guarantying cooling performance and silent operation.

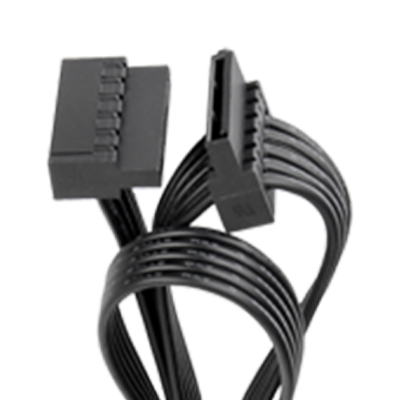

Semi Modular Flat Cable Design
Soft flat black cables come with sleeve cabling, designed to
make cable installation an easy task while fully powering the system at optimal voltages.

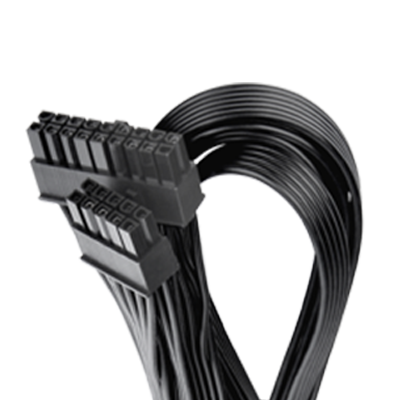

24pin Main connector (600mm) x 1

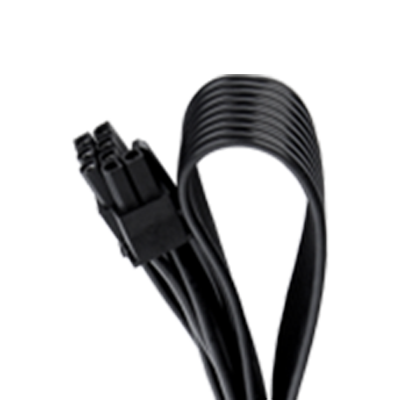

ATX 12V 8pin connector (600mm) x 1
4+4pin connector (150mm) x 1

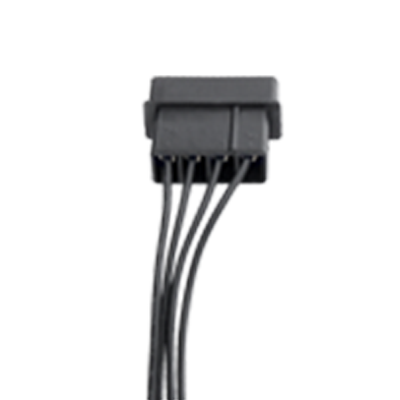

SATA connectors (500mm + 150mm + 150mm) x 3
SATA connectors (500mm + 150mm + 150mm) x 3

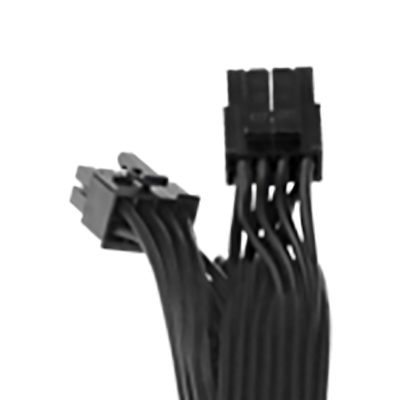

PCI-E 6+2pin connectors (500mm + 150mm) x 2

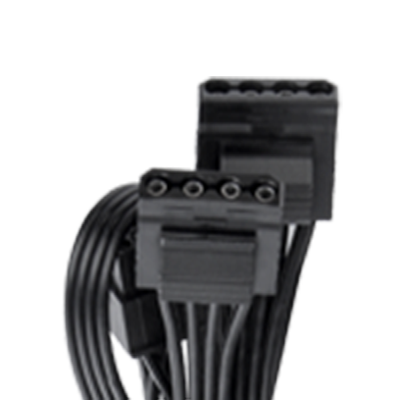

Peripheral connectors (500mm + 150mm + 150mm+ 150mm) x 4
Peripheral to FDD adapter cable (150mm) x 1
Japanese Main Capacitor
High quality Japanese main capacitor greatly improves the
power
supplies durability and ensures the Smart BM2 450W to have highest stability and reliability.
DC to DC for Stable Output Voltage
With DC to DC design, the unit can optimize maximum
energy
harvest for your system. Such as efficiently change voltage level for 12V, 5V, and 3V and to match the loads
to your power supply.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Bronze Certified and Intel C6/C7 States Ready
Smart BM2 450W saves energy through its high energy efficiency up to 85%. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy savings.
| P/N | PS-SPD-0450MNFABE-1 |
|---|---|
| watts | 450W |
| Ventole RGB | No |
| Model | SP-450AH3CCB-B |
| Type | ATX 12V v2.4 and EPS v2.92 |
| Max. Output Capacity | 450W |
| Peak Output Capacity | 540W |
| COLORE | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 12msec at 80% of full load at 230Vac input |
| Input Current | 7A max. |
| Input Frequency Range | 47Hz -63Hz |
| Input Voltage | 100V-240V~ |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperature | -20 °C to +70 °C |
| Storage Humidity | 5% to 95%, non-condensing |
| SISTEMA DI RAFFREDDAMENTO | 140mm Fan: 2300 R.P.M. ± 10% |
| Efficiency | Meet 80 PLUS®Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | cTUVus/TUV/CE/FCC/S-mark/EAC/BSMI/C-TICK/CCC |
| PCI-E 6+2pin | 2 |
| Protection | OVP ,OPP, OCP, OTP |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
SMART BM 2 450.550.650.750W Manual
- 2020-07-07
