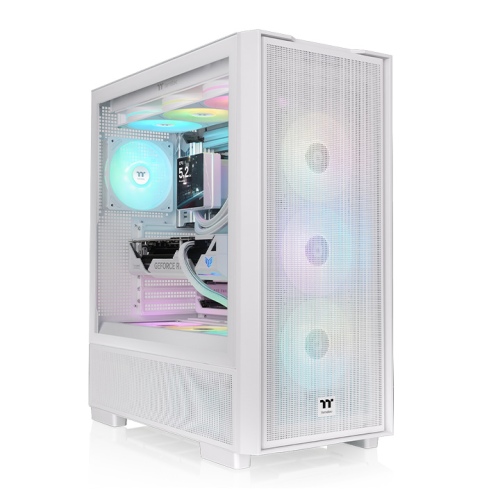

The S380 TG ARGB Snow Mid Tower Chassis is an ATX case that comes with a SF360 ARGB PWM Reverse Fan on the PSU Cover and a SF120 ARGB PWM fan at rear pre-installed. Up to ten 120mm fans, and it supports up to a 360mm radiator at the front and top, providing flexible options for cooling solutions.
- The image is for reference only.
Created for next-generation motherboards, the S380 TG ARGB Snow Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.
*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
- The image is for reference only.
- The image is for reference only.
The S380 TG ARGB Snow Mid Tower Chassis features a 4mm tempered glass side panel for a distinctive look.
- The image is for reference only.
The S380 TG ARGB Snow Mid Tower Chassis comes with a GPU holder that provides additional support, preventing graphics card from sagging.
- The image is for reference only.
- The image is for reference only.
- The image is for reference only.
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
- The image is for reference only.
Front-located I/O ports consist of following functions: • Power Button (Blue LED) • Reset Button • HD Audio • 2 x USB 3.0 Type-A • 1 x USB 3.2 Gen 2 Type-C
- The image is for reference only.
| 120 Series | 240 Series | 360 Series | 140 Series | 280 Series | 420 Series | |
|---|---|---|---|---|---|---|
| Top | ● | ● | ● | ● | ● | - |
| Front | ● | ● | ● | ● | ● | - |
| Rear | ● | - | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Top | 3 | 2 | - |
| Front | 3 | 3 | - |
| Rear | 1 | 1 | - |
| Power Cover | 3 | - | - |
| P/N | CA-11K-00M6WN-00 |
|---|---|
| Serie | S Series |
| Modello CASE | Mid Tower |
| DIMENSIONI (H x W x D) | 536 x 238 x 485mm (21.1x 9.37 x 19.1inch) |
| PANNELLI LATERALI | 4mm Tempered Glass x 1 |
| COLORE | Snow |
| MATERIALE | SPCC |
| SISTEMA DI RAFFREDDAMENTO | Power Cover (intake): 360 x 120 x 25 mm SF360 ARGB PWM Reverse Fan (500~1800rpm, 36.7 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm SF120 ARGB PWM Fan (500~1800rpm, 31.2 dBA) x 1 |
| ALLOGGIAMENTI DRIVE | 2 x 3.5”+2 x 2.5” or 1 x 3.5” + 3 x 2.5” |
| SLOT DI ESPANSIONE | 7 |
| SCHEDE MADRI | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Hidden-Connector Motherboard | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| ALIMENTATORE | Standard PS2 PSU (optional) |
| VENTOLE SUPPORTATE | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140 mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| RADIATORI SUPPORTATI | Top Side(AIO) : 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Front Side(AIO) : 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear Side(AIO): 1 x 120mm |
| AUTORIZZAZIONE | CPU cooler height limitation: 180mm VGA length limitation: 400mm PSU length limitation: 200mm |
